Product description

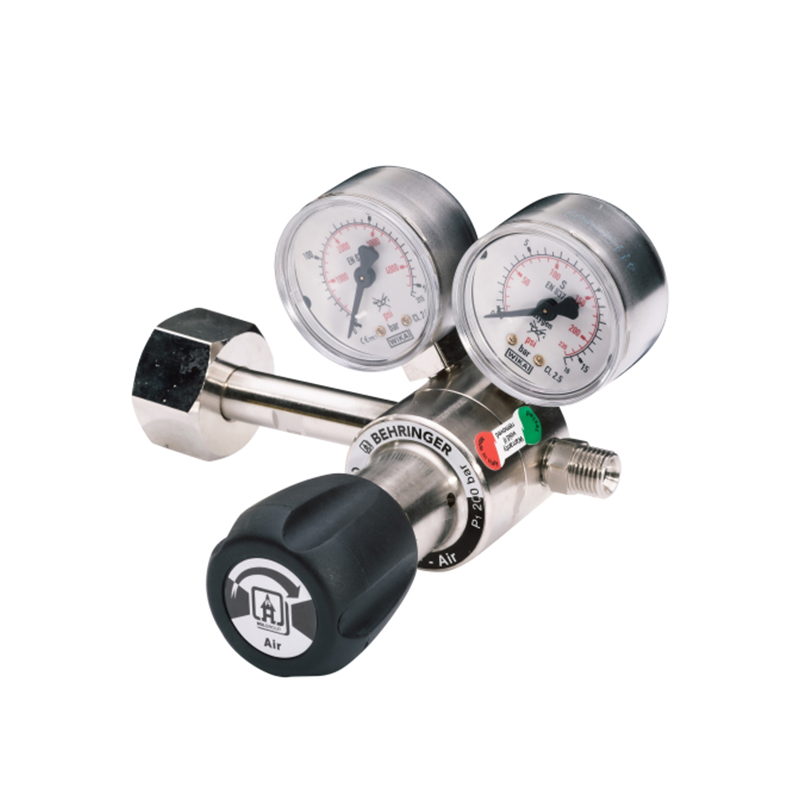

Pressure regulator for cylinders, suitable for medical gases, equipped with dual pressure gauge to show cylinder pressure and operating pressure, used on cylinder outlets to reduce the pressure down to the line or equipment set. Maximum inlet pressure is 200 bar, the outlet pressure is adjustable up to 10 bar.The gas inlet connection is specific to the gas type, the outlet is fitted with an Ø 6 mm hose connector.Its maximum capacity at 10 bar outlet pressure is 30 Nm³/h, 500 Nl/min.
Components
N.One HF High Pressure regulator with chemically nickel-plated CW614N brass body and adjustable calibration.
ABS adjustment knob.
N.One gas-specific inlet.
N.One Ø 6 mm hose connector on the outlet.
N.One overpressure discharge valve, built into the pressure regulator, pre-calibrated.
N.One High Pressure gauge with range 0/315 bar, class 2.5.
N.One Low Pressure gauge with range 0/16 bar, class 2.5.
N.One stainless steel inlet filter with filtration grade > 100 mm.
Stainless steel springs.
FKM O-Ring for O2, NBR O-ring for other gases.
NYLON seal seat for O2, PTFE seal seat for other gases.
FKM O-Ring for O2, NBR O-ring for other gases.
